Specification

Main Feature

Display Type

LED Display

Load Capacity

720W

Input Voltage

145-280V

Output Voltage

220/230 VAC +/-10%

Frequency (Battery Mode)

50/60Hz +/-5%

Battery

Lead-Acid Miantenance-Free, 2 ps with 12V & 7.2Ah

Alarm

Beeping Alarm

Indications

AC Mode: Green lighting

Battery Mode: Red lighting

Over Load: Yellow lighting

Output Features

Backup Time

25-30 Minute (1PC & 1 Monitor)

Type of Wave

Modified-Sinewave

Transfer Time

2-6 ms Typical

Manufacture Warranty

Warranty

1 year

Under the following conditions, the warranty would not be provided:

• UPS burning due to thunder, abnormal overload, insect entrance and others.

• If ambient temperature should not be maintained at 20 to 26 degrees Celsius with proper dehumidification. (24/7)

• If the product is placed in a dusty and damp place.

• In the absence of Generator connectivity Without proper battery charge, the warranty will be void.

• Battery swelling and overcharging due to the wrong system voltage setting of the UPS.

Description

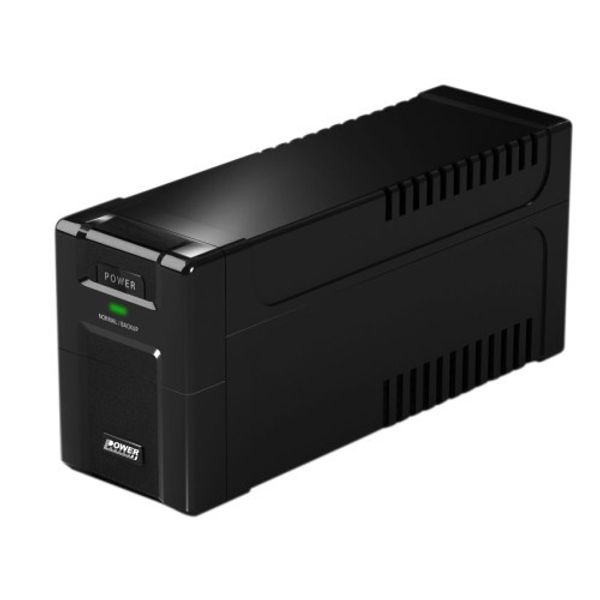

Power Guard 1200VA CS Offline UPS (Plastic Body)

The Power Guard 1200VA CS Offline UPS features Automatic voltage regulation(AVR), High/ Low Voltage Protection, Overload/ Short Protection Cool. This Power Guard UPS featured an input voltage range of 145-280VAC and a frequency of 50/60Hz+/-5%. It offers an output voltage of 220/230VAC+/-10%. It has a transfer time of 2~6 ms (Typical) and a Pure Sine Wave. The Power Guard 1200VA UPS is equipped with a Lead-Acid Maintenance-Free battery. It takes a recharge time of 6 hours up to 90% capacity. It can deliver a backup time of 05-20 mins (Depending on load). This UPS indicates AC Mode with Green lighting, Battery Mode with Red lighting, and Over Load Yellow lighting. The Power Guard 1200VA CS Offline UPS comes with a 1-year warranty.

Under the following conditions, the warranty would not be provided:

• UPS burning due to thunder, abnormal overload, insect entrance and others.

• If ambient temperature should not be maintained at 20 to 26 degrees Celsius with proper dehumidification. (24/7)

• If the product is placed in a dusty and damp place.

• In the absence of Generator connectivity Without proper battery charge, the warranty will be void.

• Battery swelling and overcharging due to the wrong system voltage setting of the UPS.
